01
Indoor logistics
Cement plants, steel mills and warehouses with strict air-quality limits.
01Electric Wheel Loaders · SDLG H-line

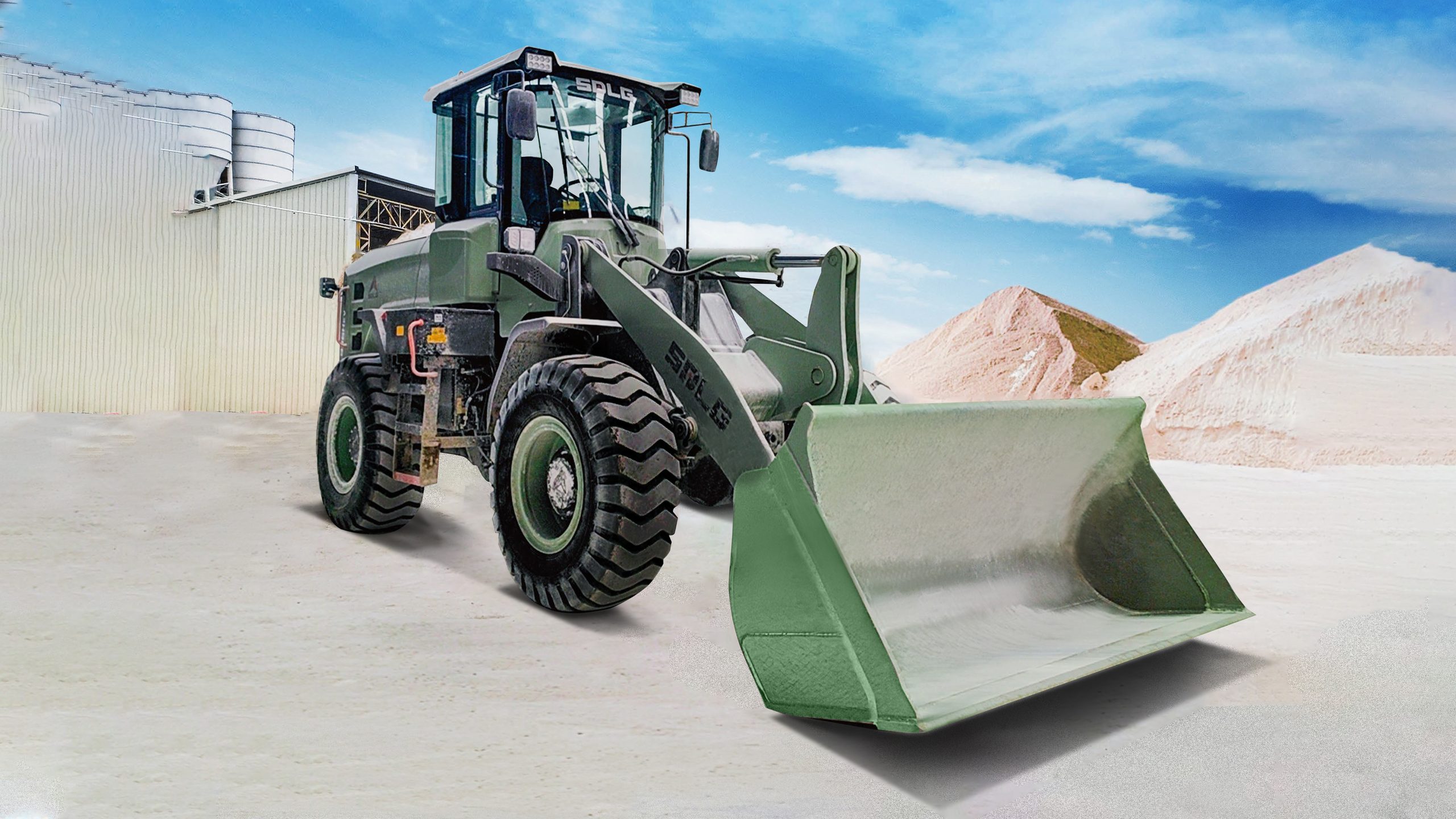

L940HEV
3.8 t electric wheel loader for cement plants and indoor sites.
The L940HEV sits in SDLG's current electric lineup, engineered for Indian quarries, mines, infrastructure and ports — where uptime decides margin. 3800 kg rated load,backed by SDLG's nationwide service network.
- 01 · Rated load
- 3800kg
- 02 · Operating weight
- 11500kg
- 03 · Bucket capacity
- 1.5–3.0m³
- 04 · Battery type / capacity / voltage
- LFP; 180.5 kWh
02Engineering data
Full specifications. No asterisks.
Numbers measured at SDLG factory test conditions. Real-world output varies by site, fuel quality and operator skill — your dealer can walk you through expected fleet economics.
01 — Engine & power
4 parameters
- Battery type / capacity / voltage
- LFP; 180.5 kWh
- Charging
- DC charging, GB/T type connector
- Drive motor rated power & torque
- 60 kW; 843 Nm
- Drive motor peak power & torque
- 90 kW; 1700 Nm
02 — Capacity & forces
2 parameters
- Rated load
- 3800 kg
- Bucket capacity
- 1.5–3.0 m³
03 — Hydraulics & drive
1 parameters
- Traction / braking force
- 100 kN
04 — Dimensions & geometry
2 parameters
- Dump clearance / reach
- 2950 mm; 1050 mm
- Transmission / tyre / cabin
- Planetary powershift F2/R1; 17.5-25-12PR L3; STD cab with AC
05 — Other parameters
1 parameters
- Operating weight
- 11500 kg
03Why this machine
Six things every operator notices in the first hundred hours.
The L940HEVis engineered around two metrics that decide a machine's life: cost-per-tonne and time-between-failures. Everything below is a deliberate trade-off in favour of both.
01 / 06
LFP battery system
kWh battery pack — engineered for Indian summer ambient temperatures.
02 / 06
DC fast charge
Single-port DC fast charging — full pack in 60–90 minutes. CCS-2 connector, compatible with Indian fast-charge infrastructure.
03 / 06
PMSM drive motor
Permanent-magnet synchronous motor with regenerative braking — 30%+ energy recovery on downhill cycles.
04 / 06
Battery thermal management
Liquid-cooled battery pack with cell-level monitoring — operates safely in 0–55°C ambient.
05 / 06
Zero noise emissions
Suitable for indoor work, urban night-shifts, cement plants and ports with strict emission regulations.
06 / 06
Lower TCO
No fuel, no oil changes, no DPF service — operating cost per tonne is up to 60% lower than diesel equivalents.
04Where it earns
Proven duty cycles across India.
The L940HEV slots into fleets from PMGSY rural roads to NHAI highway packages and large port stockyards. These four duty cycles drive most deployments.
02
Urban night-shifts
Municipal work in noise-restricted residential areas.
03
Ports
Container terminals and bulk-handling sites with shore-side power.
04
Underground
Metro tunnels and underground mining where diesel is restricted.
EMI from₹2,45,000/ 60 moFlexible financing available
06 — L940HEV catalogue
Download the completeL940HEV catalogue.
Every dimension. Every option code. Every dealer-fitment accessory. We send it straight to your WhatsApp in under a minute.
L940HEV PDF brochure
Download the L940HEV brochure.
Download PDFor get it on WhatsApp
By submitting you agree to our privacy policy.
07Same family
Other models in the electric wheel loaders range.
Pick the payload that matches your duty cycle — your dealer can line up a side-by-side demo within seven days.
Nationwide network
08Local support
Dealers and service across India.
Service vans, genuine parts and trained technicians — staged across India for guaranteed response.
