01
Mining
Open-pit ore and overburden — sustained ripping and digging cycles.
01Excavators · SDLG H-line

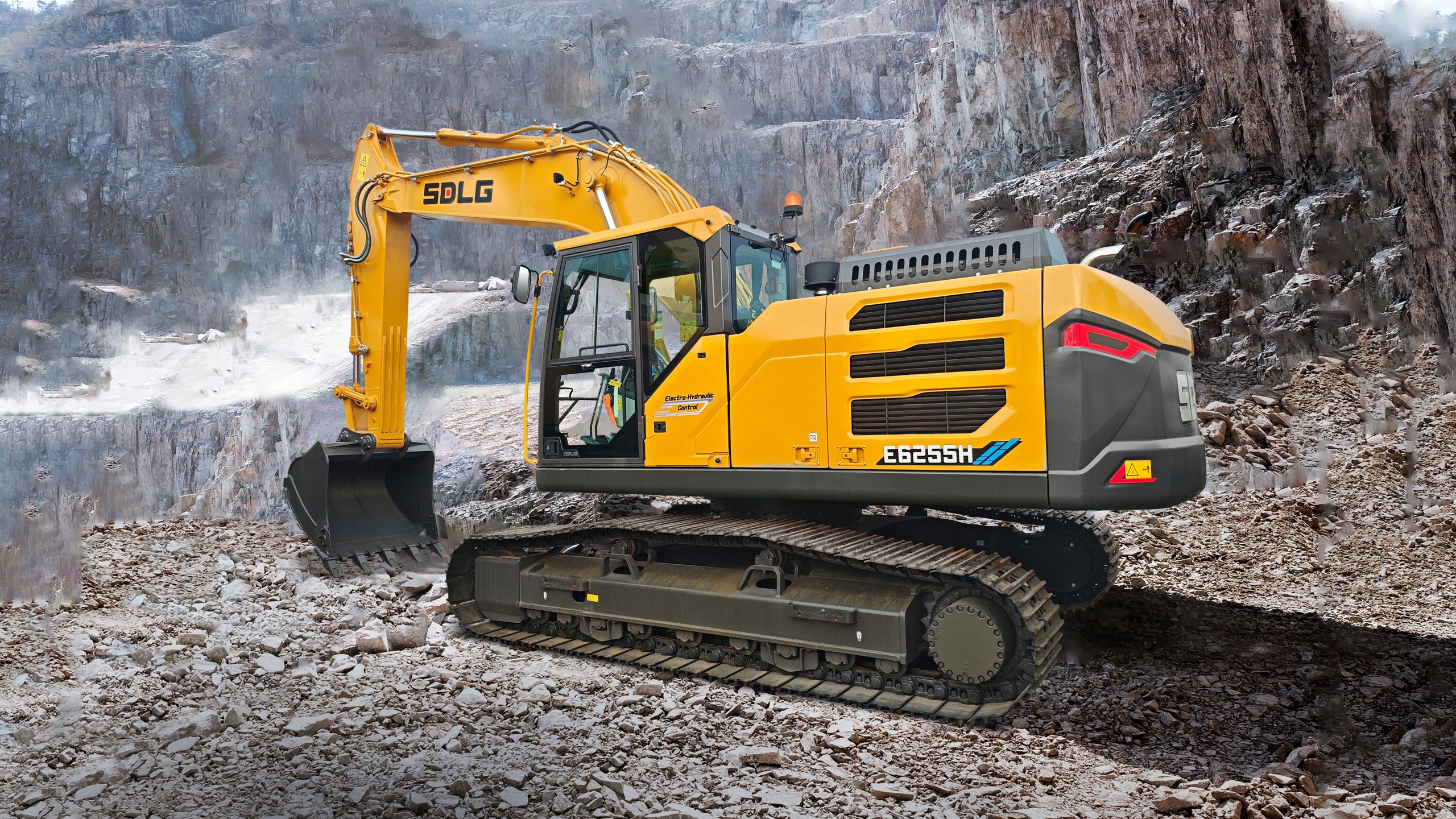

E6255H
25.8 t excavator for open-cast mining and quarry duty.
The E6255H sits in SDLG's current excavators lineup, engineered for Indian quarries, mines, infrastructure and ports — where uptime decides margin. 25800 kg operating weight,backed by SDLG's nationwide service network.
- 01 · Operating weight
- 25800kg
- 02 · Bucket capacity
- 1.5m³
- 03 · Engine power & torque
- 150 kW; 890 Nm
- 04 · Boom length
- 6000mm
02Engineering data
Full specifications. No asterisks.
Numbers measured at SDLG factory test conditions. Real-world output varies by site, fuel quality and operator skill — your dealer can walk you through expected fleet economics.
01 — Engine & power
1 parameters
- Engine power & torque
- 150 kW; 890 Nm
02 — Capacity & forces
2 parameters
- Bucket capacity
- 1.5 m³; options 1.3–1.6 m³
- Max digging depth
- 6980 mm
03 — Hydraulics & drive
1 parameters
- Digging force
- Bucket 176 kN
04 — Dimensions & geometry
4 parameters
- Boom length
- 6000 mm
- Arm length
- 2970 mm
- Max reach on ground
- 10080 mm
- Max dump height
- 6800 mm
05 — Other parameters
2 parameters
- Operating weight
- 25800 kg
- Cabin / safety / tech
- FOPS cab with AC; fully electric control; optional guards
03Why this machine
Six things every operator notices in the first hundred hours.
The E6255His engineered around two metrics that decide a machine's life: cost-per-tonne and time-between-failures. Everything below is a deliberate trade-off in favour of both.
01 / 06
Tier-3 / Stage V engine
Yanmar / Kubota / Perkins block delivers proven low-emission output and matches Indian fuel availability.
02 / 06
Auto-idle hydraulics
Load-sensing main pump with auto-idle reduces fuel burn by up to 14% over the prior generation in real-world cycles.
03 / 06
Reinforced boom geometry
Box-section boom and arm with internal stiffeners — sized for sustained ripping in hard rock and frozen ground.
04 / 06
Heavy-duty undercarriage
Sealed track rollers and bolt-on track shoes engineered for Indian quarry conditions — abrasive, shock-loaded, monsoon-rated.
05 / 06
ROPS / FOPS cab
Wide-glass operator cab with rubber-mount isolation and air-conditioning standard from the smallest model up.
06 / 06
Service intervals
500-hour engine intervals and dealer-stocked wear parts mean lower TCO across the H-line range.
04Where it earns
Proven duty cycles across India.
The E6255H slots into fleets from PMGSY rural roads to NHAI highway packages and large port stockyards. These four duty cycles drive most deployments.
02
Infrastructure
Highway cuttings, metro civil work and foundations.
03
Utility & civil
Water pipelines, drainage, urban site clearance and demolition.
04
Quarry
Stone quarry face-loading and crusher feed cycles.
EMI from₹1,42,000/ 60 moFlexible financing available
06 — E6255H catalogue
Download the completeE6255H catalogue.
Every dimension. Every option code. Every dealer-fitment accessory. We send it straight to your WhatsApp in under a minute.
E6255H PDF brochure
Download the E6255H brochure.
Download PDFor get it on WhatsApp
By submitting you agree to our privacy policy.
07Same family
Other models in the excavators range.
Pick the payload that matches your duty cycle — your dealer can line up a side-by-side demo within seven days.
Nationwide network
08Local support
Dealers and service across India.
Service vans, genuine parts and trained technicians — staged across India for guaranteed response.
