01Excavators · SDLG H-line

E6505H

52 t mining-class excavator for high-volume bulk material.

The E6505H sits in SDLG's current excavators lineup, engineered for Indian quarries, mines, infrastructure and ports — where uptime decides margin. 52000 kg operating weight,backed by SDLG's nationwide service network.

01 · Operating weight: 52000kg
02 · Bucket capacity: 3.2m³
03 · Engine power & torque: 321 kW; 1898 Nm
04 · Boom length: 6500mm

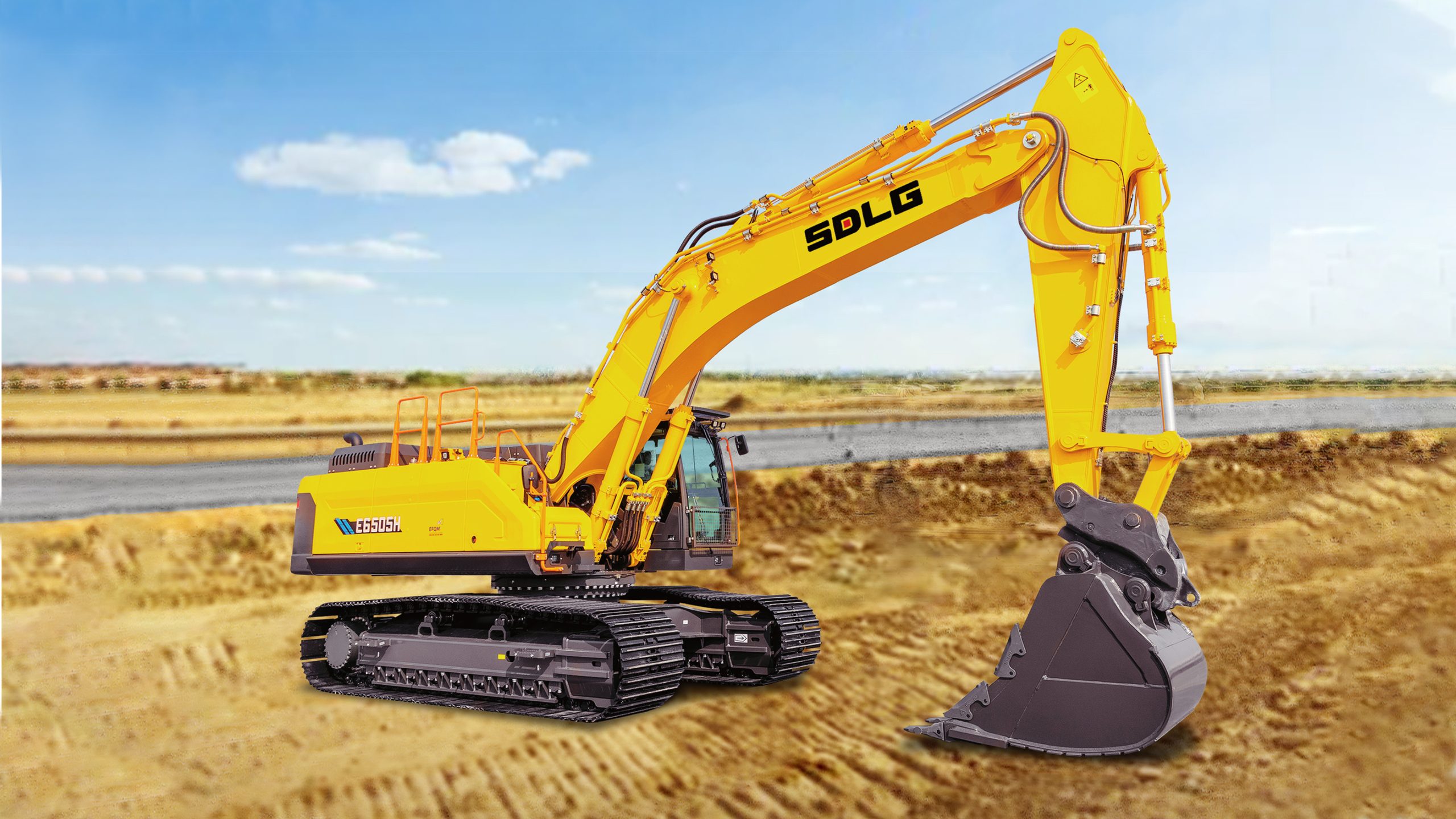

SDLG E6505H Excavators, three-quarter view

SDLG · Excavators

E6505H · 52000 kg operating weight

3.2 m³ bucket capacity · 321 kW; 1898 Nm engine power & torque

02Engineering data

Full specifications. No asterisks.

Numbers measured at SDLG factory test conditions. Real-world output varies by site, fuel quality and operator skill — your dealer can walk you through expected fleet economics.

01 — Engine & power

1 parameters

Engine power & torque: 321 kW; 1898 Nm

02 — Capacity & forces

2 parameters

Bucket capacity: 3.2 m³; options 2.8–3.4 m³
Max digging depth: 7030 mm

03 — Hydraulics & drive

1 parameters

Digging force: Bucket 276.5 kN

04 — Dimensions & geometry

4 parameters

Boom length: 6500 mm
Arm length: 3000 mm
Max reach on ground: 11050 mm
Max dump height: 7020 mm

05 — Other parameters

2 parameters

Operating weight: 52000 kg
Cabin / safety / tech: FOPS cab with AC; air-suspended seat; touchscreen IECU; rear camera

03Why this machine

Six things every operator notices in the first hundred hours.

The E6505His engineered around two metrics that decide a machine's life: cost-per-tonne and time-between-failures. Everything below is a deliberate trade-off in favour of both.

01 / 06

Tier-3 / Stage V engine

Yanmar / Kubota / Perkins block delivers proven low-emission output and matches Indian fuel availability.

02 / 06

Auto-idle hydraulics

Load-sensing main pump with auto-idle reduces fuel burn by up to 14% over the prior generation in real-world cycles.

03 / 06

Reinforced boom geometry

Box-section boom and arm with internal stiffeners — sized for sustained ripping in hard rock and frozen ground.

04 / 06

Heavy-duty undercarriage

Sealed track rollers and bolt-on track shoes engineered for Indian quarry conditions — abrasive, shock-loaded, monsoon-rated.

05 / 06

ROPS / FOPS cab

Wide-glass operator cab with rubber-mount isolation and air-conditioning standard from the smallest model up.

06 / 06

Service intervals

500-hour engine intervals and dealer-stocked wear parts mean lower TCO across the H-line range.

04Where it earns

Proven duty cycles across India.

The E6505H slots into fleets from PMGSY rural roads to NHAI highway packages and large port stockyards. These four duty cycles drive most deployments.
