01
NHAI highways
Greenfield highway sub-grade and base-course preparation.
01Motor Graders · SDLG H-line

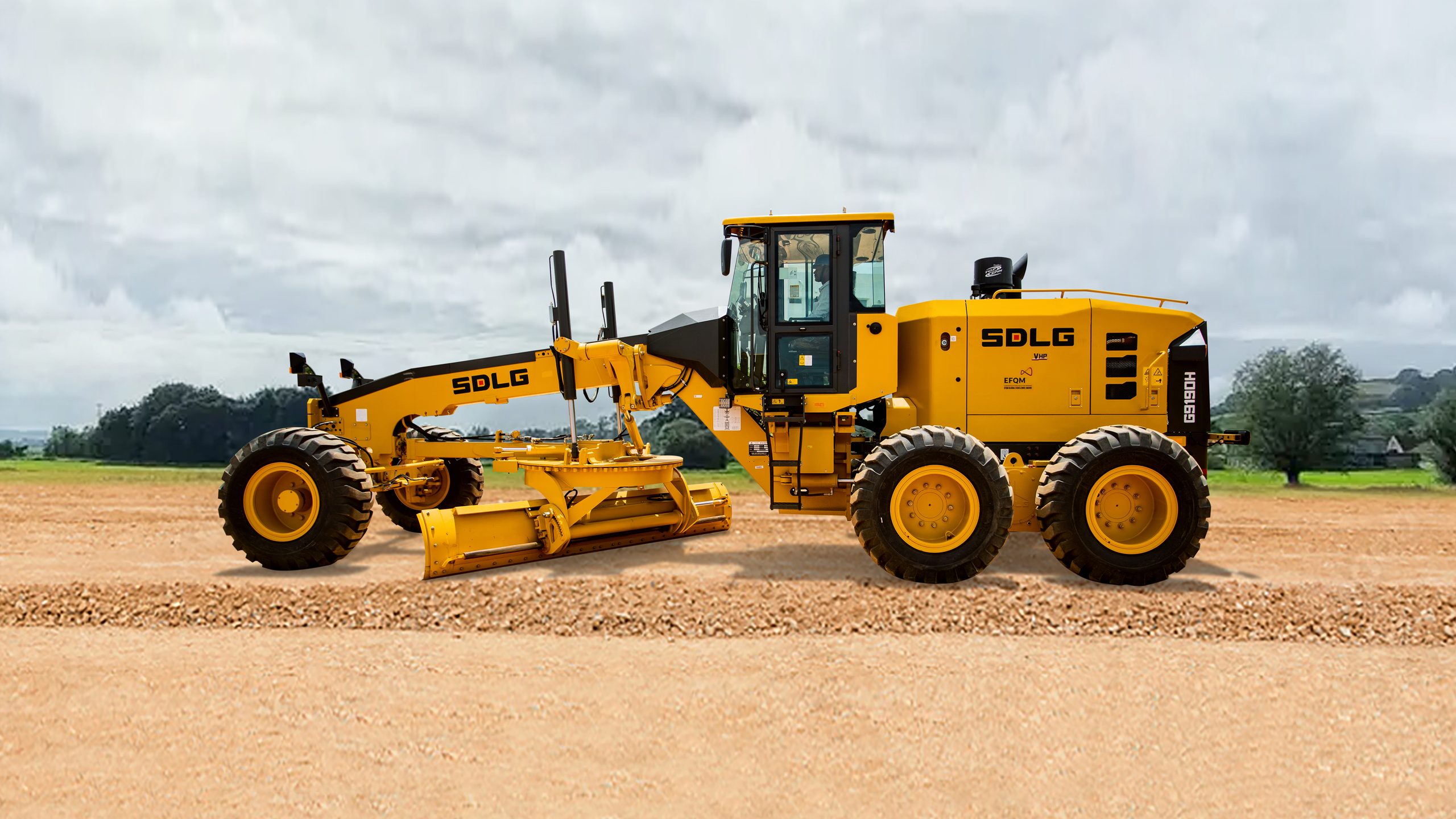

G9190Hi
16 t motor grader for state-highway and haul-road work.
The G9190Hi sits in SDLG's current motor graders lineup, engineered for Indian quarries, mines, infrastructure and ports — where uptime decides margin. 16200 kg operating weight,backed by SDLG's nationwide service network.
- 01 · Operating weight
- 16200kg
- 02 · Engine power & torque
- 200 hp; 990 Nm
- 03 · Moldboard length
- 12 ft; 3658 mm
- 04 · Blade base
- 2569mm
02Engineering data
Full specifications. No asterisks.
Numbers measured at SDLG factory test conditions. Real-world output varies by site, fuel quality and operator skill — your dealer can walk you through expected fleet economics.
01 — Engine & power
2 parameters
- Engine power & torque
- 200 hp; 990 Nm
- Transmission / gears
- ZF 6BP210; auto powershift; F6/R3
02 — Dimensions & geometry
5 parameters
- Moldboard length
- 12 ft; 3658 mm
- Blade base
- 2569 mm
- Blade down force
- 7800 kgf
- Tyre size / type
- 17.5 × 25 - 16PR
- Turning / wheel lean
- 7600 mm; ±18°
03 — Other parameters
3 parameters
- Operating weight
- 16200 kg
- Hydraulics
- Load-sensing; variable piston pump; 113 LPM / 20 ± 0.35 MPa
- Cabin / safety / tech
- ROPS/FOPS AC; MP3 Bluetooth; cruise control; telematics
03Why this machine
Six things every operator notices in the first hundred hours.
The G9190Hiis engineered around two metrics that decide a machine's life: cost-per-tonne and time-between-failures. Everything below is a deliberate trade-off in favour of both.
01 / 06
High-torque diesel
Tier-3 diesel delivers steady torque at PMGSY/NHAI grading speeds.
02 / 06
Articulated frame
Articulated frame with up to ±23° steering angle — tight turning radius for cul-de-sac roadwork and shoulder grading.
03 / 06
Hydraulic blade control
Independent blade-tilt and side-shift hydraulics — fingertip control of cut depth on long highway runs.
04 / 06
Heavy-duty front axle
Reinforced front axle with ±18° wheel inclination — handles uneven shoulders and unfinished base layers.
05 / 06
Pressurised cab
Tinted-glass cab with AC, suspension seat and tilt-and-telescope steering. Designed for 10-hour highway shifts.
06 / 06
Common spares
Shared planetary final drives across the G-series — your dealer stocks one shelf for the lineup, not seven.
04Where it earns
Proven duty cycles across India.
The G9190Hi slots into fleets from PMGSY rural roads to NHAI highway packages and large port stockyards. These four duty cycles drive most deployments.
02
Rural roads
PMGSY connectivity roads and panchayat-level grading.
03
Mining haul-roads
Maintenance grading on iron-ore and coal-mine internal roads.
04
Airport & yards
Runway sub-base, container yard preparation and large industrial sites.
EMI from₹2,12,000/ 60 moFlexible financing available
06 — G9190Hi catalogue
Download the completeG9190Hi catalogue.
Every dimension. Every option code. Every dealer-fitment accessory. We send it straight to your WhatsApp in under a minute.
G9190Hi PDF brochure
Download the G9190Hi brochure.
Download PDFor get it on WhatsApp
By submitting you agree to our privacy policy.
07Same family
Other models in the motor graders range.
Pick the payload that matches your duty cycle — your dealer can line up a side-by-side demo within seven days.
Nationwide network
08Local support
Dealers and service across India.
Service vans, genuine parts and trained technicians — staged across India for guaranteed response.
